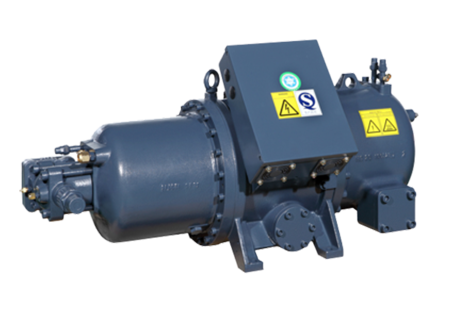

Newly launched HANBELL RC2-G/T series semi hermetic screw compressor was developed based on RC2 series compressor. The new compressor suitable for high Saturated Discharge Temperature and the newly designed high efficiency motor make the operation range of RC2-G/T series much wider.
RC2-G series belong to high condensing temperature model which is designed for the low waste heat recovery requirement and the R134a refrigerant system, the limit Saturated Discharge Temperature of this new type can reach up to 85℃.
RC2-T series belong to ultra-high condensing temperature model which is designed for the high waste heat recovery requirement and the R245fa refrigerant system. The limit Saturated Discharge Temperature of this new type can break the limit of traditional compressor and reach up to 125℃, thus steam can be produced directly.
RC2-G Product Information
Click here for more information
RC2-T Product Information
Click here for more information
The RC2-G/T series compressor consists of 20 models, with condensation temperatures ranging from 75 ° C to 125 ° C
According to the operating conditions of R134a and R245fa, the most suitable high efficiency motor is designed
Long life bearing is used to meet ultimate operation conditions
Adopt floating medium pressure (economizer return gas pressure) design, so that the compressor can use the economizer no matter it is under full load or partial load
Applicable to R134a, R245fa and other environmental refrigerants
A new protection module INT69 HBY Diagnose is equipped as an standard
Model | Compressor | Motor | Strength test (air pressure) | Weight | noise | |||||||
Discharge volume (50Hz) | Rotation speed（50Hz） | Vi valve | Capacity control (%) | Type | Start model | Voltage（50Hz) | Protection | |||||
m3/h | RPM | Step type | Stepless type | V | Kg/cm2g | Kg | dB | |||||
RC2-100G | 98 | 2950 | 2.2 | 33，66, 100 | 33~100 | 3 phase 2 pole squirrel cage induction motor | Y-△ | 380 | PTC+ PT100 | 38 | 285 | 73 |
RC2-230G | 230 | 25，50，75，100 | 25~100 | 577 | 79 | |||||||
RC2-260G | 257 | 592 | 79 | |||||||||
RC2-410G | 407 | 779 | 83 | |||||||||
RC2-470G | 471 | 825 | 84 | |||||||||
RC2-710G | 713 | 1168 | 87 | |||||||||
RC2-790G | 791 | 1199 | 87 | |||||||||
Model | Compressor | Motor | Strength test | Weight | Noise | |||||||
Discharge volume (50Hz) | Rotation speed（50Hz） | Vi valve | Capacity control (%) | type | Start model | Voltage（50Hz) | Protection | |||||
m3/h | RPM | step | stepless | V | Kg/cm2G | Kg | dB | |||||
RC-2-200T | 193 | 2950 | 2.2 | 25 | 25~100 | 3 phase 2 pole squirrel cage induction motor | Y-△ | 380 | PTC+ PT100 | 35 | 425 | 78.4 |
RC-2-230T | 230 | 535 | 79 | |||||||||
RC-2-260T | 257 | 560 | 79.2 | |||||||||
RC-2-300T | 293 | 600 | 79.6 | |||||||||
RC-2-310T | 308 | 580 | 79.9 | |||||||||
RC-2-340T | 339 | 620 | 80.4 | |||||||||
RC-2-370T | 366 | 640 | 81.5 | |||||||||
RC-2-410T | 407 | 740 | 83.1 | |||||||||
RC-2-470T | 471 | 810 | 84.2 | |||||||||
RC-2-510T | 508 | 780 | 85.2 | |||||||||
RC-2-550T | 549 | 850 | 86.3 | |||||||||
RC-2-580T | 583 | 840 | 86.6 | |||||||||
RC-2-620T | 619 | 880 | 86.9 | |||||||||
RC-2-710T | 713 | 1099 | 87.1 | |||||||||
RC-2-790T | 791 | 1180 | 87.3 | |||||||||
RC-2-830T | 825 | 1215 | 87.6 | |||||||||
RC-2-930T | 929 | 1240 | 88.4 | |||||||||
