Shanghai Hanbell was established in 1996 and listed on Shenzhen A-share market in 2007. Jinan, Guangzhou, Nanjing and Chongqing branches have been set up one after another, and the subsidiaries of Zhejiang Hanson, Shanghai Comer, Hanbell HongKong, Hanbell Vietnam, Hanbell Korea and Zhejiang Comer have been set up one after another. All these reflect the achievements of HANBELL people's hard work in the past 27 years.
HANBELL PRECISE MACHINERY COMPANY 27 YEARS OF HISTORYAIMS TO OPEN

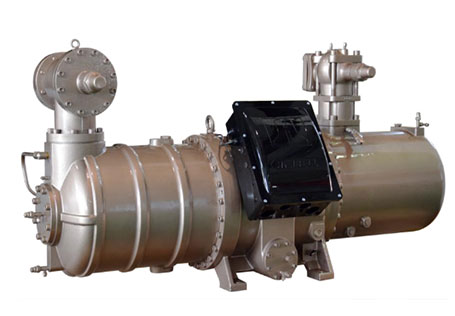

The RC2-PLUS single-stage low ambient temperature air source compressor launched by Hanbell is developed for cold areas with heating application demands. At present, it has 6 models. Compared with RC2 series, it not only has similar appearance, but also has the characteristics of high performance and large displacement.
Product Information
Click here for more information
The lowest suction saturation temperature can reach - 40℃, which is suitable for heating application of air source unit in severe cold environment；
With high oil separation efficiency, the oil discharge rate of compressor reduced
No external oil cooler to simplify the system application
Large single unit heating capacity, which is suitable for central heating projects and reduces the initial investment and space required to install the machine
Double electronic expansion valve is used to precisely control the temperature of the compressor, and the performance of the compressor is improved by about 10% compared to screw compressors during hearting process under the low ambient temperature standard working conditions.
RC2-PLUS Series | |||||||||||||
Model | Compressor | Motor | Lubricant filling | Weight | Strength test | ||||||||
Air flow | Rotor rotation speed | VI value | Capacity regulation | Starting type | Type | Protection device | Voltage | Insulation grade | L | Kg | Bar | ||
Step | Stepless | ||||||||||||
RC2-510PLUS | 508 | 2950r/min | 3.5 | 25,50, | 25~100 | Y-? | 3 phase 2 pole squirrel-cage inductor motor | PTC | 380 | Level F | 25 | 795 | 35 |
RC2-550PLUS | 549 | 28 | 865 | ||||||||||
RC2-620PLUS | 619 | 28 | 895 | ||||||||||
RC2-710PLUS | 713 | 31 | 1179 | ||||||||||
RC2-830PLUS | 825 | 31 | 1228 | ||||||||||
RC2-930PLUS | 929 | 31 | 1253 | ||||||||||
